 Application  |
|
 Application  |
 simple evaluation of rotating and linearmovement with regard to underspeed; blocking  |
|
 Switching function  |
 output is switched during the start-up delay and if (f actual) is greater than (f preset)  |
|
 Electrical design  |
 DC PNP  |
|
 Switching output  |
 normally open  |
|
 Electrical data  |
|
 Nominal voltage [V]  |
 10...36 DC  |
|
 Current consumption [mA]  |
 < 15  |
|
 Reverse polarity protection  |
 yes  |
|
 Outputs  |
|
 Transistor  |
|
 Current rating (continuous) [mA]  |
 250  |
|
 Current rating (peak) [mA]  |
 250  |
|
 Voltage drop [V]  |
 < 2.5  |
|
 Short-circuit proof  |
 yes  |
|
 Overload protection  |
 yes  |
|
 Range  |
|
 Sensing range [mm]  |
 10  |
|
 Correction factors  |
 mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu
approx. 0.3  |
|
 Measuring / setting range  |
|
 Setting range [pulses/min.]  |
 5...300  |
|
 Adjustment of the switch point  |
 multiturn potentiometer  |
|
 Hysteresis [% of Sp]  |
 10  |
|
 Start-up delay [s]  |
 15  |
|
 Reaction times  |
|
 Damping frequency (max.) [pulses/min]  |
 15000  |
|
 Environment  |
|
 Ambient temperature [°C]  |
 -25...80  |
|
 Protection  |
 IP 67  |
|
 Safety classification  |
|
 MTTF [a]  |
 898  |
|
 Mechanical data  |
|
 Mounting  |
 flush mountable  |
|
 Housing materials  |
 brass special coating; PBT (Pocan)  |
|
 Weight [kg]  |
 0.257  |
|
 Displays / operating elements  |
|
 Input pulses LED  |
 yellow  |
|
 Output status indication LED  |
 green  |
|

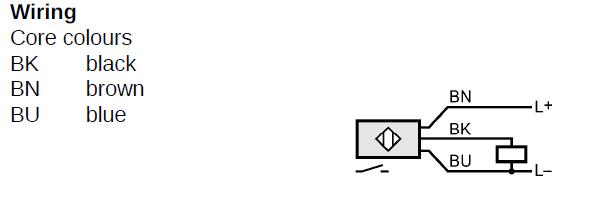

 Electrical connection  |
|
 Connection  |
 PVC cable / 2 m; 3 x 0.5 mm²  |
|

  |
|
 Remarks  |
|
 Pack quantity [piece]  |
 1  |
